Bay BX
The Bay Family
The Bay is also available as an insert option: The Bay VL.

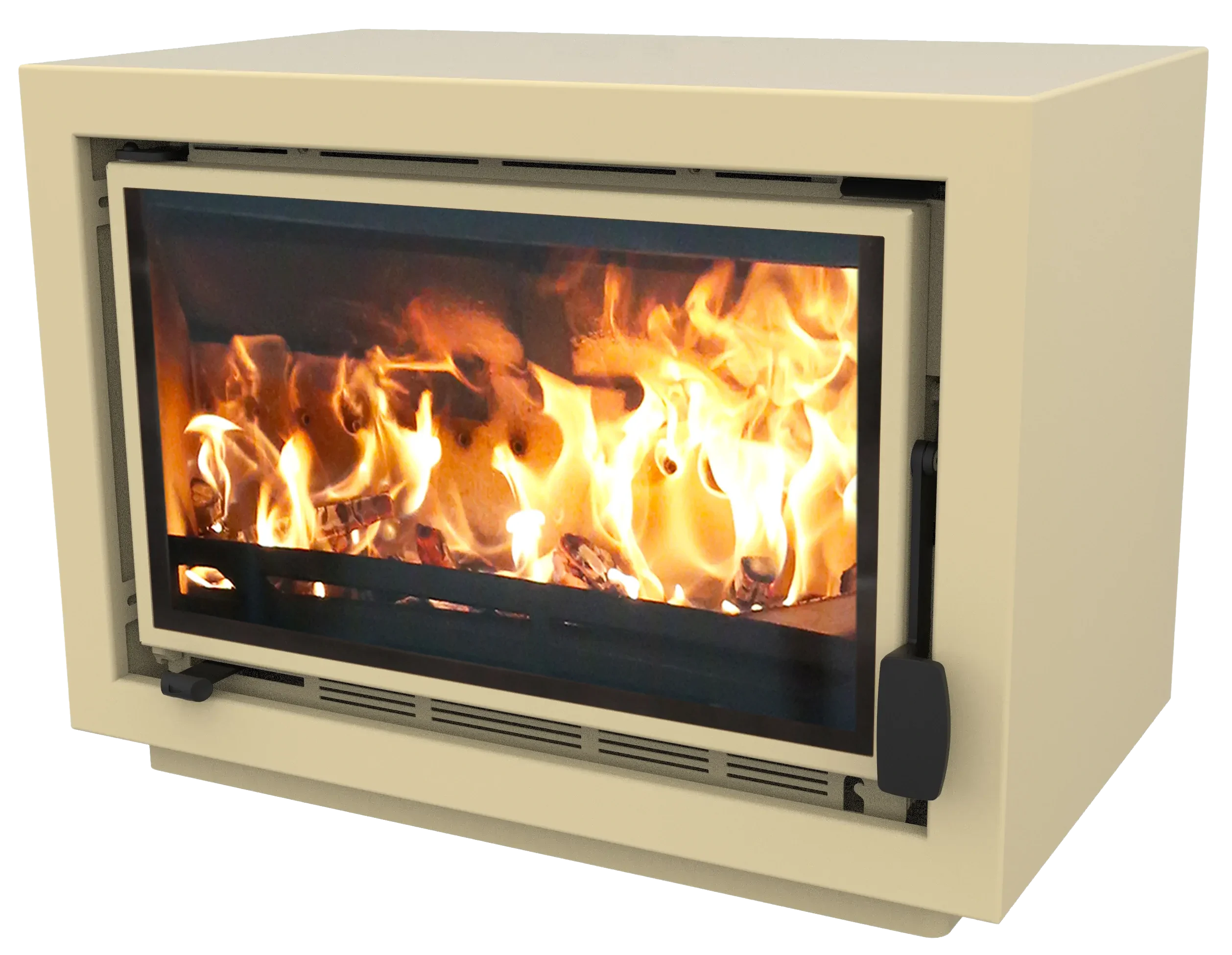

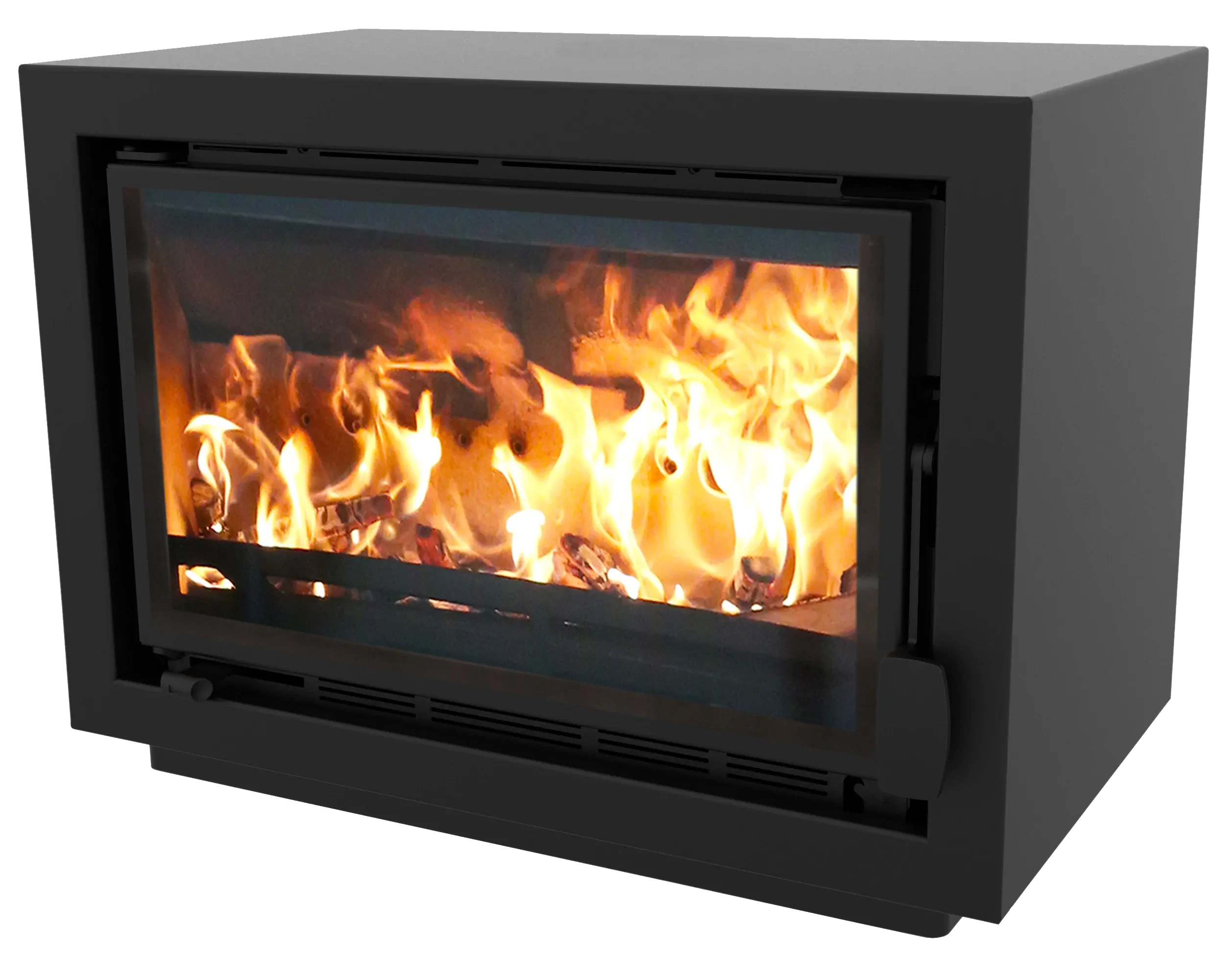

The Bay BX is the latest addition to the Bay range.
The firebox and frame of the stove is the same as the Bay VL but features an outer casing transforming the appliance into a freestanding stove. The Bay BX can be installed directly onto a hearth or we offer a choice of three base options to raise the stove up: bench stand, centre stand or store stand. Both the stove and base options are available in eight colours.
- SIA Eco Design Ready
- Cleanburn Airwash Technology
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
Output – 5.0kW (range 2-7kW)
Materials – Plate steel, cast iron, ceramic glass
- Choice of eight colours
| Model name | Bay BX |
| Rated output | 5 |
| Net efficiency | 81 |
| Min distance to combustibles (Side) | 150 |
| Min distance to combustibles (Rear) | 270 |
| Particulates (13% O₂) | 12 |
| CO (13% O₂) | 1250 |
| OGC (13% O₂) | 118 |
| NOX (13% O₂) | 105 |
| Energy rating | A+ |
| EEI | 107 |
Features
- SIA Eco Design Ready
- Cleanburn Airwash Technology
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
Output & Materials
Output – 5.0kW (range 2-7kW)
Materials – Plate steel, cast iron, ceramic glass
Customisation Options
- Choice of eight colours
Instructions & Specifications
Technical Specifications
| Model name | Bay BX |
| Rated output | 5 |
| Net efficiency | 81 |
| Min distance to combustibles (Side) | 150 |
| Min distance to combustibles (Rear) | 270 |
| Particulates (13% O₂) | 12 |
| CO (13% O₂) | 1250 |
| OGC (13% O₂) | 118 |
| NOX (13% O₂) | 105 |
| Energy rating | A+ |
| EEI | 107 |
