C-Four Duo
C-Series Family
The C-Series is one of Charnwood’s latest innovations. A range of classically styled wood burning stoves that feature one single air control and an integrated inlet for ducting external air to improve performance and efficiency.
There are two stoves within the C-Series duo – the C-Four duo and C-Five duo
A multi-fuel version of our C-Four. Fitted with a fixed grate the stove burns wood and mineral fuels equally well with high efficiency and low emissions.
Featuring a large picture window, the C-Four is the smallest model in the C-Series, delivering a heat output to the room of between 2 to 5.5kW.
The stove is fire brick lined and can take a log length of up to 282mm (11”). With a rated output of 4.9kW the C-Four, in certain situations, can be installed without the need for external air. This stove meets Clean Air Act requirements for smoke control exemption; allowing wood to be burnt in smoke control areas.
- Fixed grate for burning solid fuel
- Cleanburn airwash technology
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
- Sliding ashpan for clean and easy ash removal
Output: 5kW (range 2-5.5kW)
Materials – Plate steel, cast iron, fire brick, ceramic glass
- Flue boiler
- Vertical rear flue adaptor
- Rear heatshield

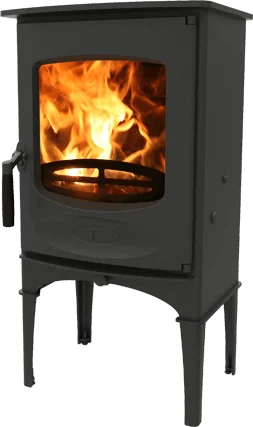

- Store stand and high legs

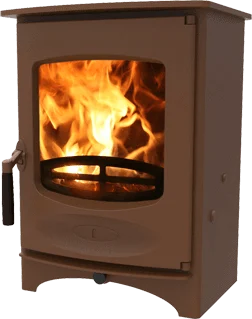

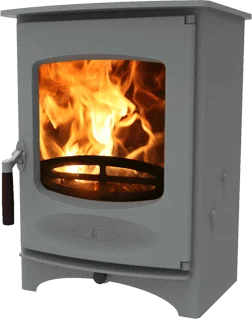

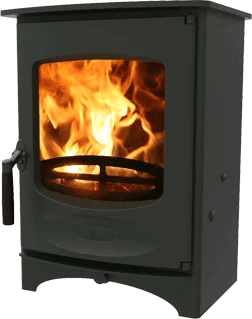

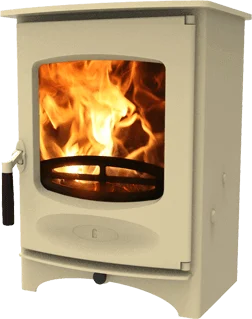

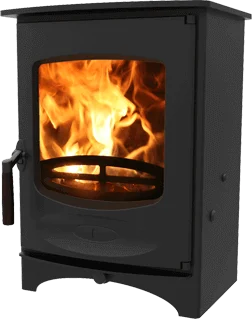

- Choice of eight colours
| Model name | C-Four Duo |
| Rated output | 5 |
| Net efficiency | 84 |
| Min distance to combustibles (Side) | 550 |
| Min distance to combustibles (Rear) | 500 |
| Particulates (13% O₂) | 28 |
| CO (13% O₂) | 995 |
| OGC (13% O₂) | 85 |
| NOX (13% O₂) | 97 |
| Energy rating | A+ |
| EEI | 112 |
Features
- Fixed grate for burning solid fuel
- Cleanburn airwash technology
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
- Sliding ashpan for clean and easy ash removal
Output & Materials
Output: 5kW (range 2-5.5kW)
Materials – Plate steel, cast iron, fire brick, ceramic glass
Customisation Options
- Flue boiler
- Vertical rear flue adaptor
- Rear heatshield
- Store stand and high legs
- Choice of eight colours
Instructions & Specifications
Technical Specifications
| Model name | C-Four Duo |
| Rated output | 5 |
| Net efficiency | 84 |
| Min distance to combustibles (Side) | 550 |
| Min distance to combustibles (Rear) | 500 |
| Particulates (13% O₂) | 28 |
| CO (13% O₂) | 995 |
| OGC (13% O₂) | 85 |
| NOX (13% O₂) | 97 |
| Energy rating | A+ |
| EEI | 112 |
