C-Four Insert
C-Series Family
The C-Series is one of Charnwood’s latest innovations. A range of classically styled wood burning stoves that feature one single air control and an integrated inlet for ducting external air to improve performance and efficiency. There are six stoves within the C-Series.
For a freestanding alternative with more output, consider the Charnwood C-Six.

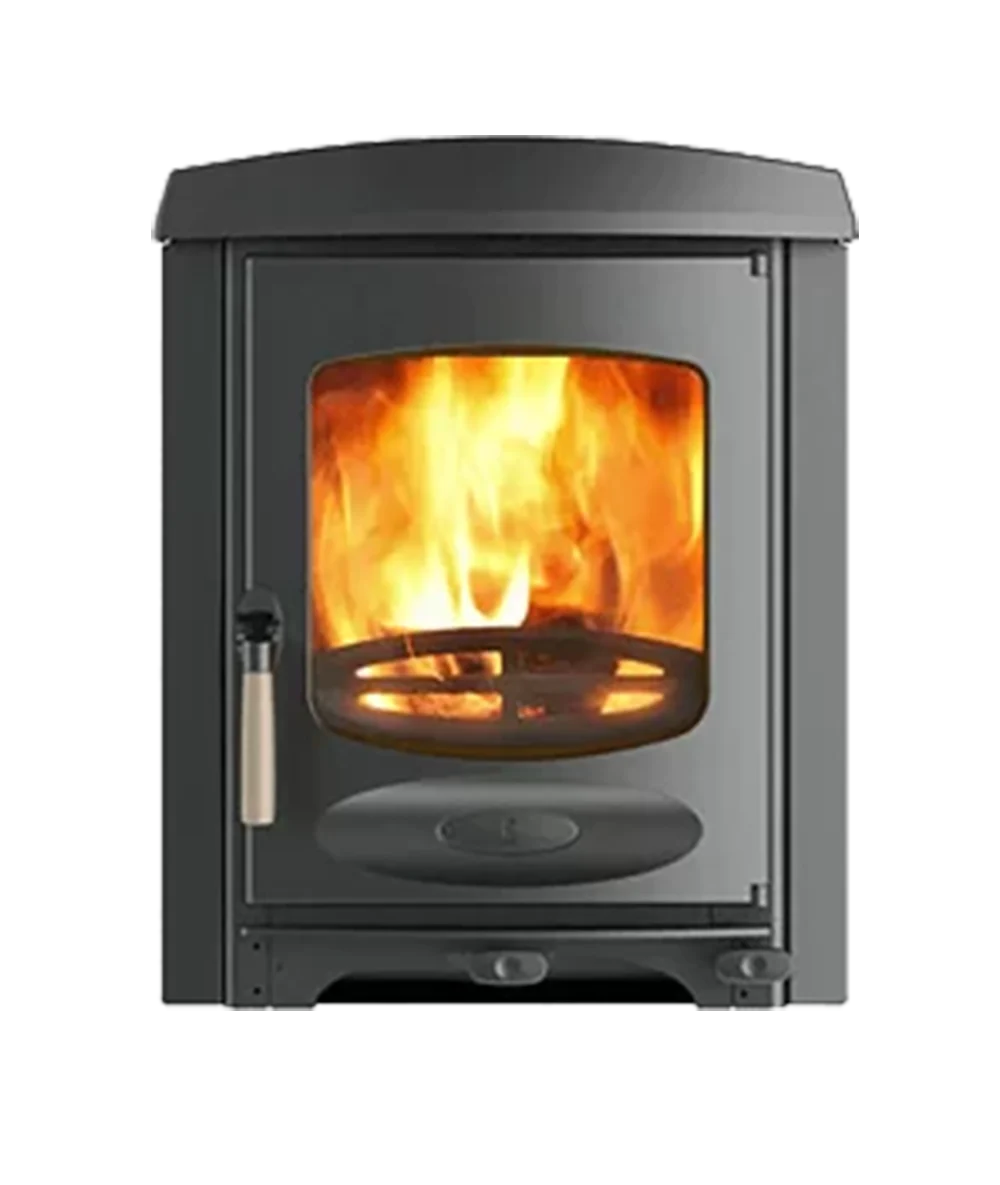

Based on the free standing C-Four, this stove is designed to fit into a standard fireplace.
Featuring a single air control and an integrated outlet for ducting external air, the C-Four Insert burns exceptionally clean with outstanding efficiency.
This stove also features our renowned converting grate for efficient multi fuel burning and meets the DEFRA requirements for smoke control exemption; allowing wood to be burnt in smoke control areas.
- SIA Eco Design Ready model available
- Cleanburn Airwash Technology
- Drop down throat plate enabling the chimney to be swept through the stove
- Single air control and an integrated outlet for ducting external air
- DEFRA exempt model for burning wood in smoke control areas
Output – 5.0kW (range 2-5.5kW)
Materials – Plate steel, cast iron, ceramic glass
- Choice of eight colours
| Model name | C-Four Insert |
| Rated output | 4.9 |
| Net efficiency | 80 |
| Min distance to combustibles (Side) | 100 |
| Min distance to combustibles (Rear) | 100 |
| Particulates (13% O₂) | 13 |
| CO (13% O₂) | 1033 |
| OGC (13% O₂) | 87 |
| NOX (13% O₂) | 139 |
| Energy rating | A |
| EEI | 106 |
Features
- SIA Eco Design Ready model available
- Cleanburn Airwash Technology
- Drop down throat plate enabling the chimney to be swept through the stove
- Single air control and an integrated outlet for ducting external air
- DEFRA exempt model for burning wood in smoke control areas
Output & Materials
Output – 5.0kW (range 2-5.5kW)
Materials – Plate steel, cast iron, ceramic glass
Customisation Options
- Choice of eight colours
Instructions & Specifications
Technical Specifications
| Model name | C-Four Insert |
| Rated output | 4.9 |
| Net efficiency | 80 |
| Min distance to combustibles (Side) | 100 |
| Min distance to combustibles (Rear) | 100 |
| Particulates (13% O₂) | 13 |
| CO (13% O₂) | 1033 |
| OGC (13% O₂) | 87 |
| NOX (13% O₂) | 139 |
| Energy rating | A |
| EEI | 106 |
